Virtual Switch Setup

Virtual Switch Configuration Workflow

The following screenshots demonstrate the complete workflow for creating an External virtual switch type in Hyper-V, going over intial vSwitch creation in the Hyper-V Virtual Switch Manager, vSwitch types, network adapter selection, overall vSwitch configuration, applying settings, and assigning VMs to the vSwitch.

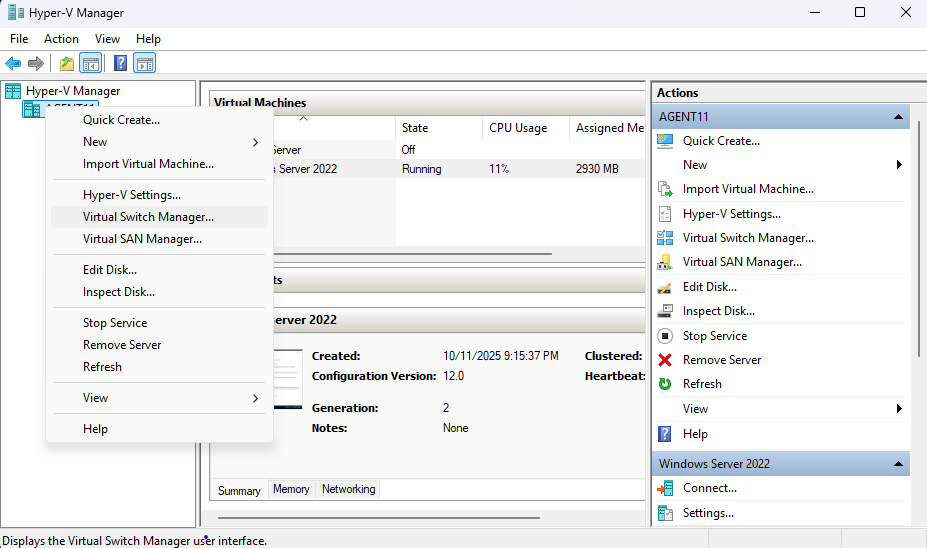

Step 1 - Launch the Virtual Switch Manager

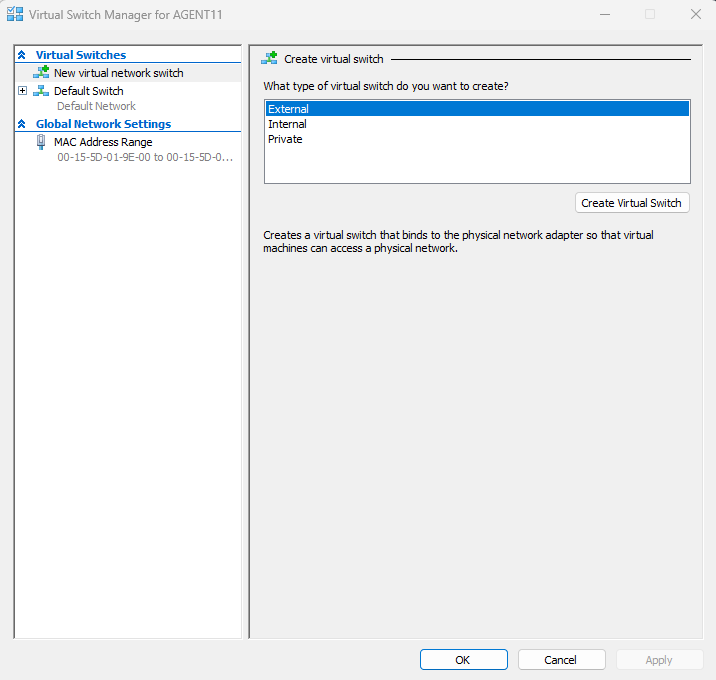

Step 2 - Select virtual switch type

Here an External vSwitch type is selected for this configuration.

Step 3 - Click Create Virtual Switch

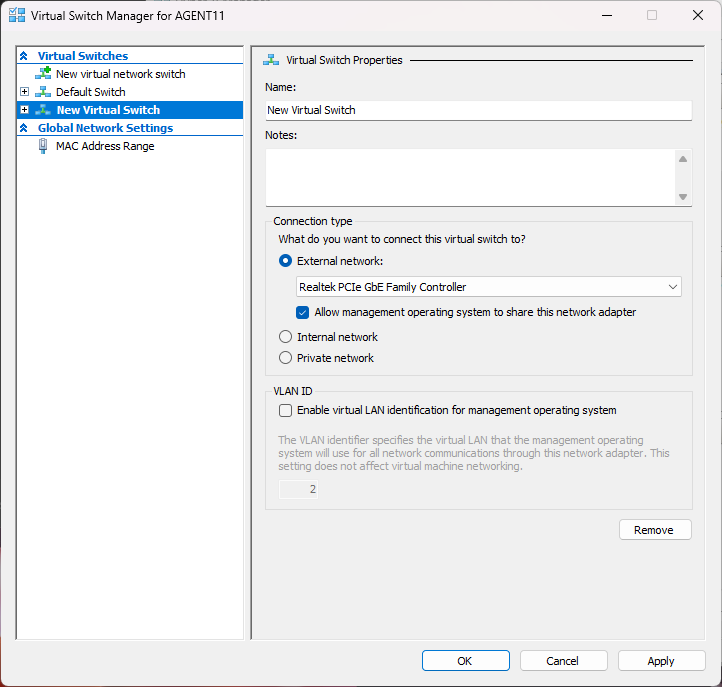

Step 4 - Select network adapter and configure the vSwitch, then click Apply

In this example, I'm selecting the machines Ethernet adapter.

The check box "Allow management operating system to share this network adapter", allows each VM to use the Ethernet adapters DNS/DHCP settings to obtain IP configurations.

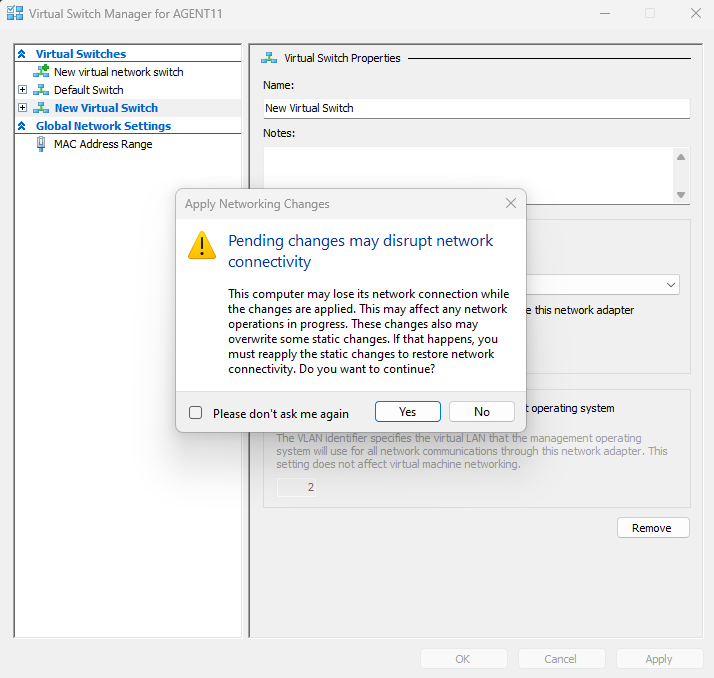

Step 5 - Click Yes on Apply Networking Changes prompt

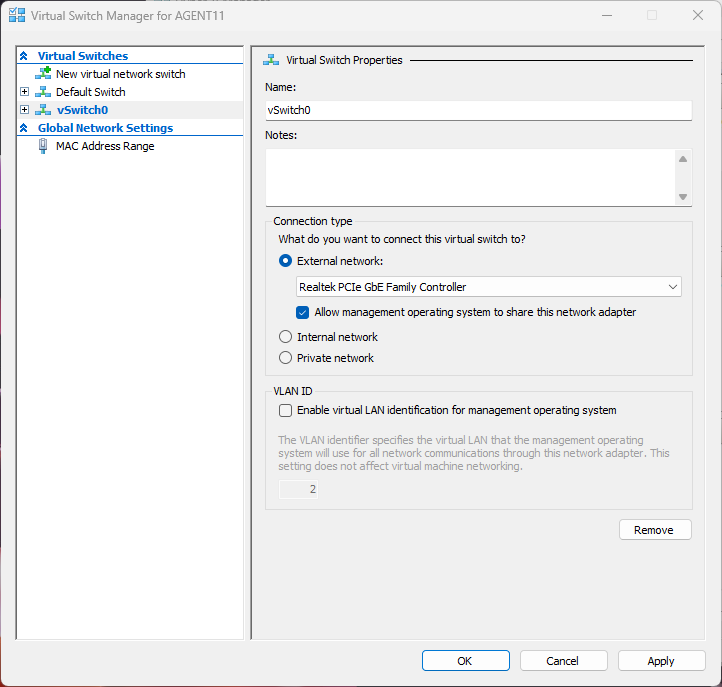

Step 6 - Configured vSwitch ready to go, click OK

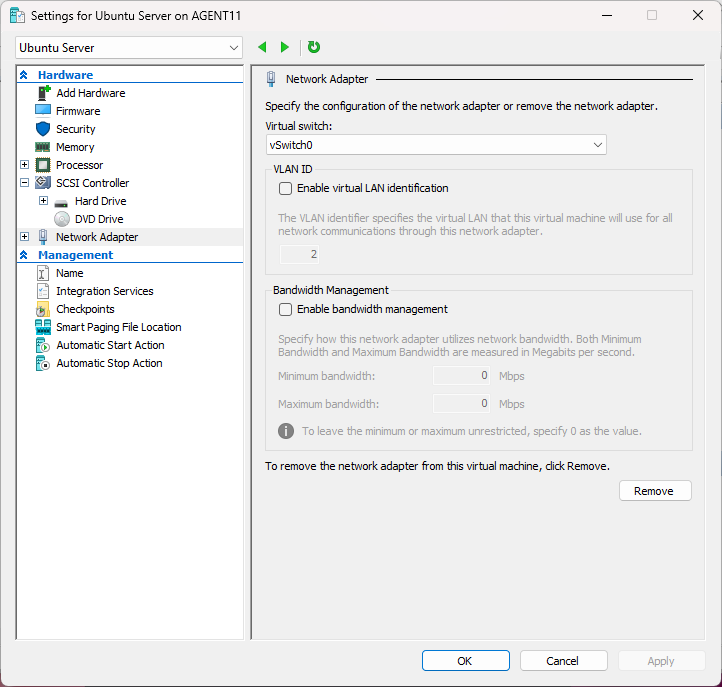

Step 7 - Assign Ubuntu Server to vSwtich0

Step 8 - Assign Windows Server to vSwitch0

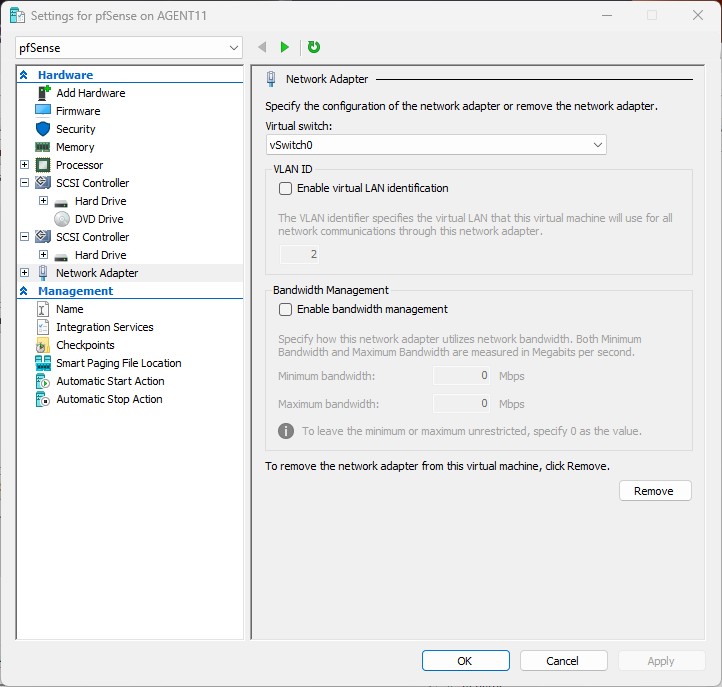

Step 9 - Assign pfSense to vSwitch0
