Hyper-V Administrative Tasks II

This page continues where the first Administrative Tasks walkthrough left off. Going over other VM tasks, Hyper-V host settings, Quick Create workflows, and virtual disk editing operations within Hyper-V Manager.

1. VM Tasks

General virtual machine tasks commonly performed inside Hyper-V Manager

Opening the VM task menu inside Hyper-V Manager

Right mouse click on given VM to:

  1. Connect to VM
  2. Access VM Settings

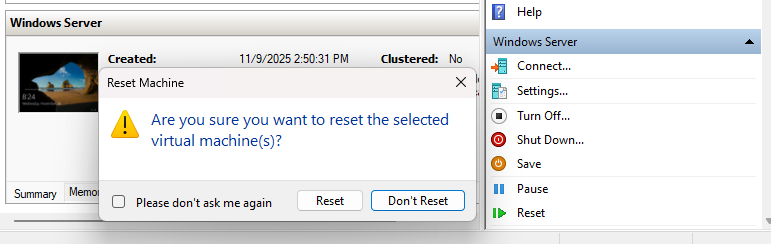

  3. Turn Off VM, Shut Down, Reset (Reboot) VM
  4. Etc
Managing VM options such as Start, Stop, Checkpoints, and Settings



2. Hyper-V Settings

Host-level configuration screens for managing global Hyper-V platform behavior.

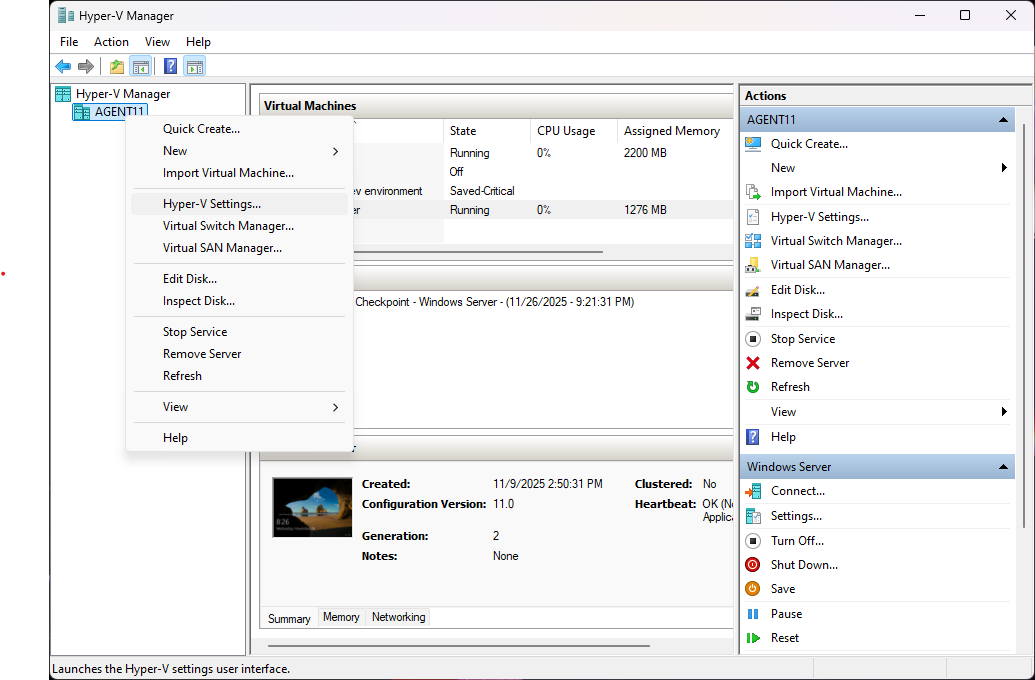

Hyper-V Settings — General overview panel for host configuration

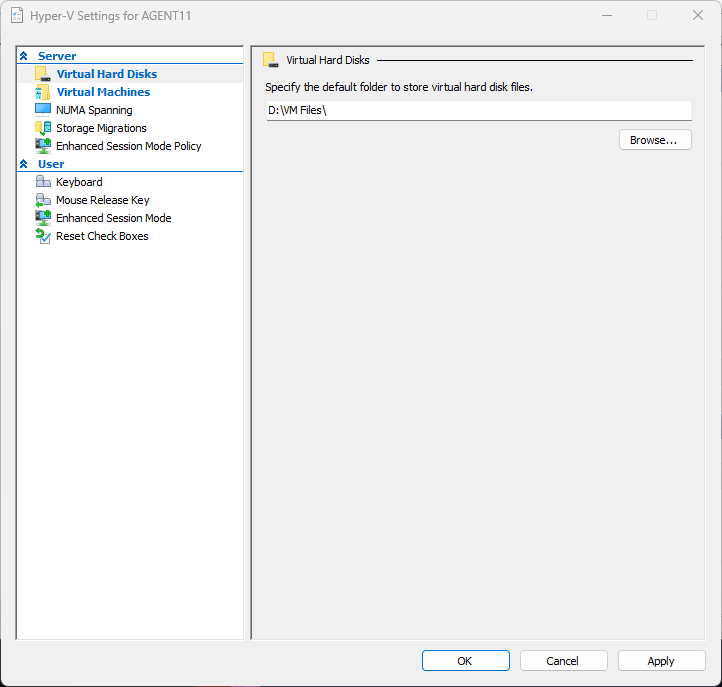

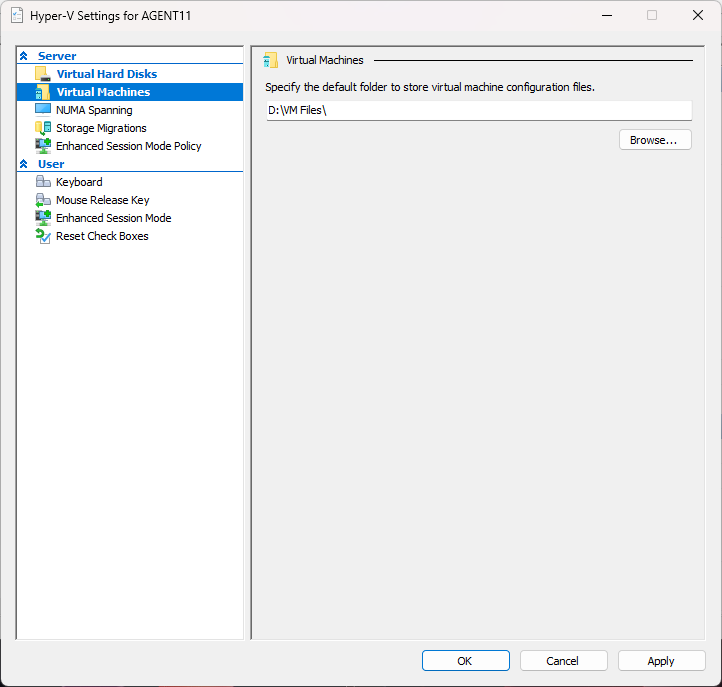

Adjusting default VM configuration and storage locations
Configuring NUMA spanning support for multi-processor environments

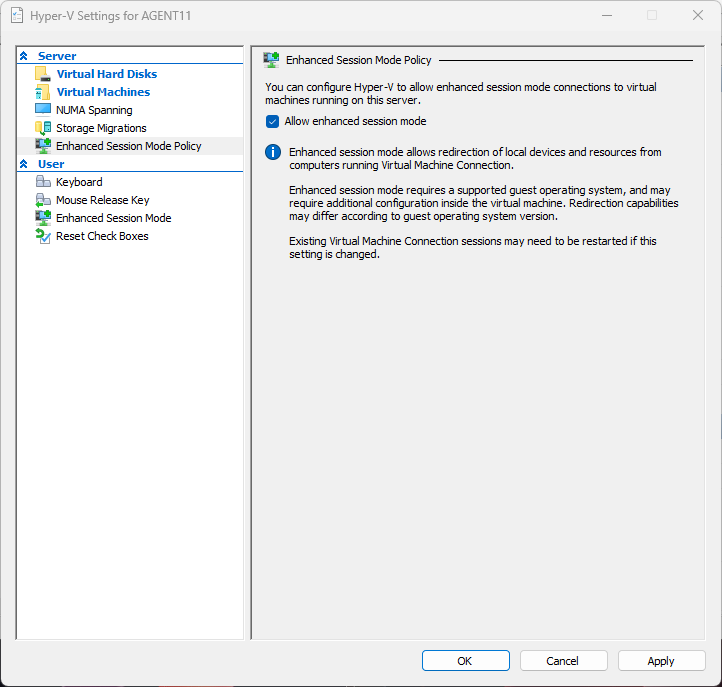

Configuring Enhanced Session Mode Policy for interactive VM access

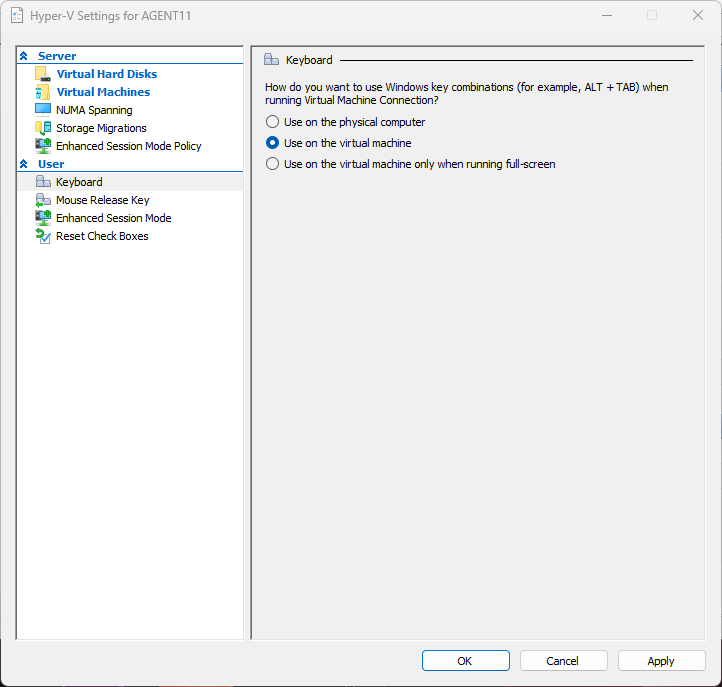

Setting keyboard pass-through options for VM console control

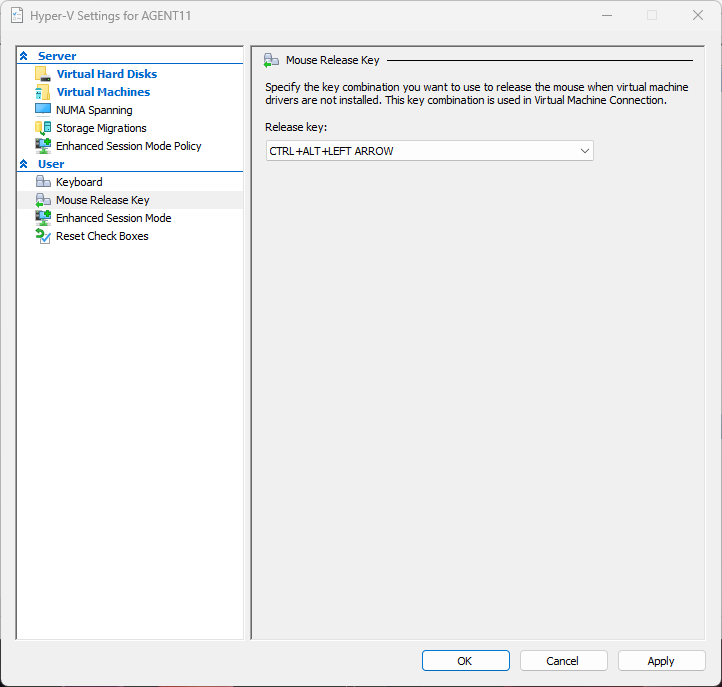

Setting mouse release key combination for VM console control
Enhanced Session Mode

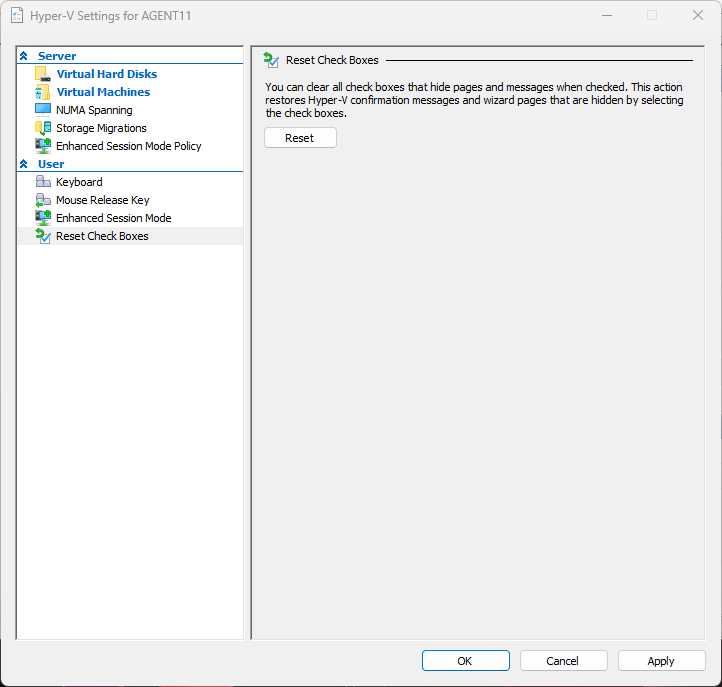

Reset Check Boxes This button in Hyper-V settings is used to restore the default behavior of confirmation messages and wizard pages.



3. Quick Create

The step-by-step workflow for creating a virtual machine using the Quick Create wizard.

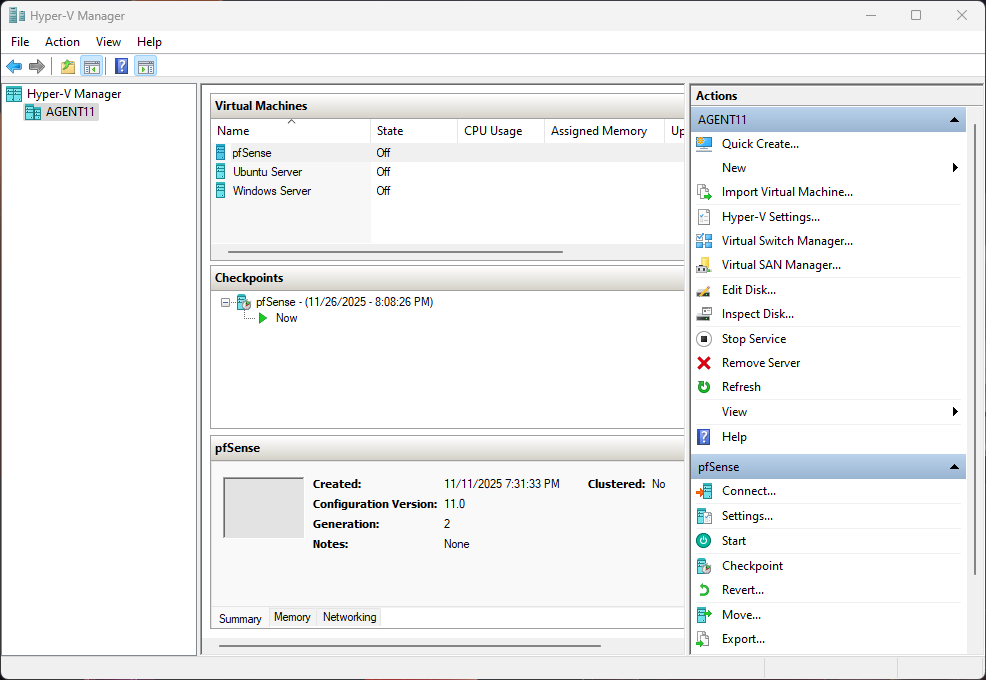

Quick Create — Launching the wizard from Hyper-V Manager

In the upper right-hand side under Actions click Quick Create...

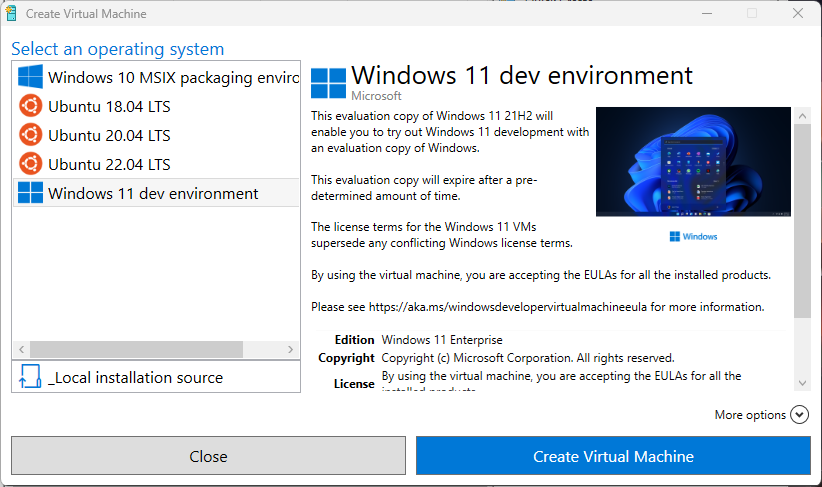

Selecting a base operating system image

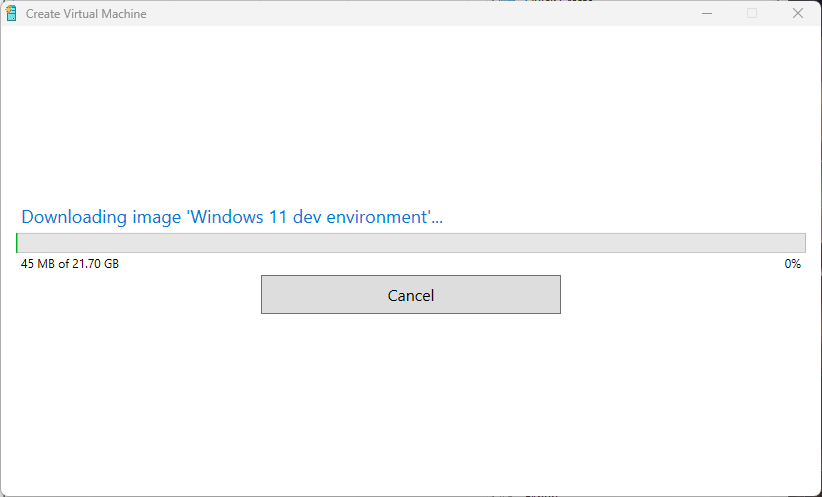

Beginning the Quick Create image download

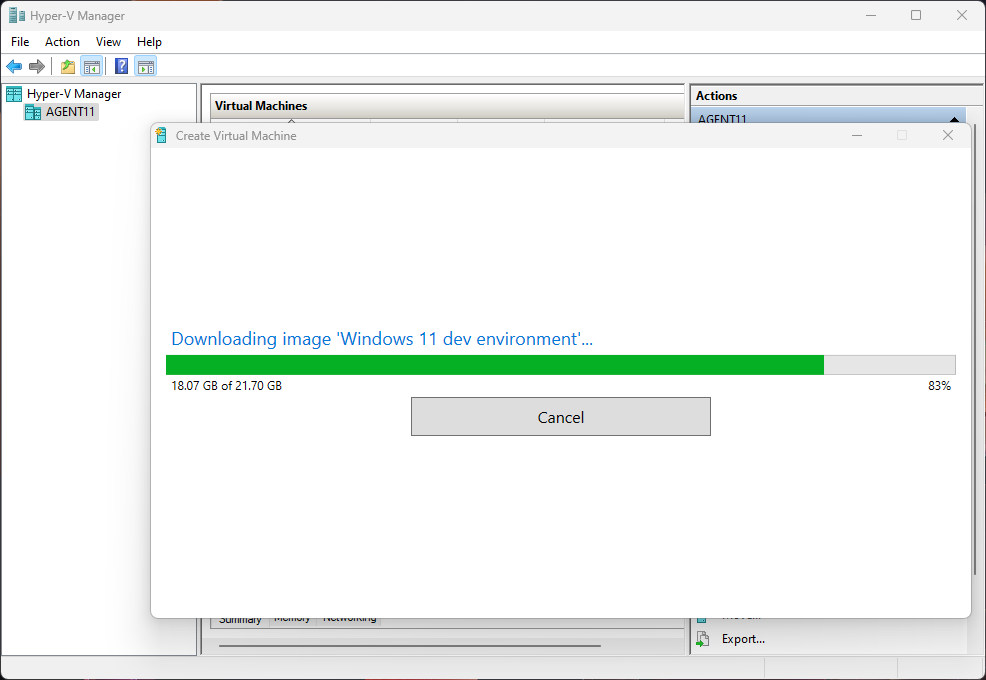

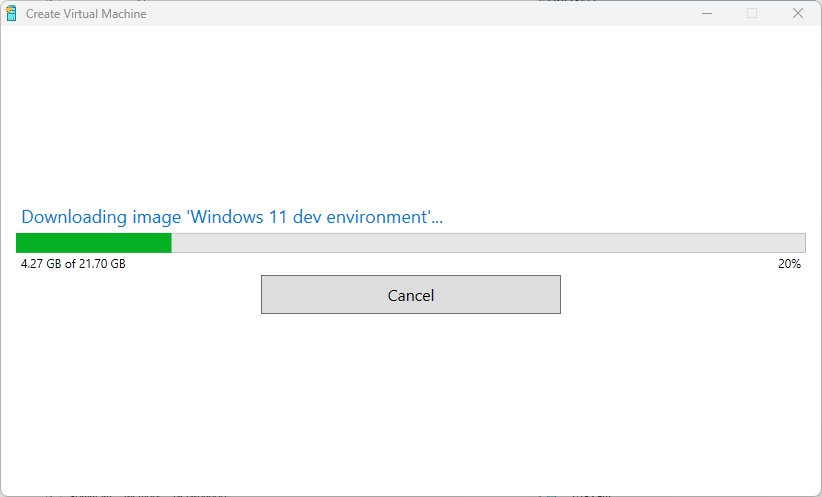

Downloading image 'Windows 11 dev environment'...
Beginning the Quick Create image download

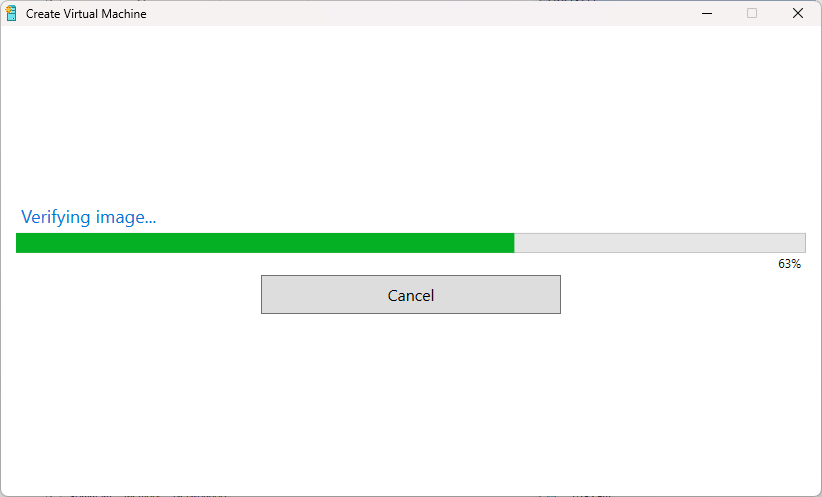

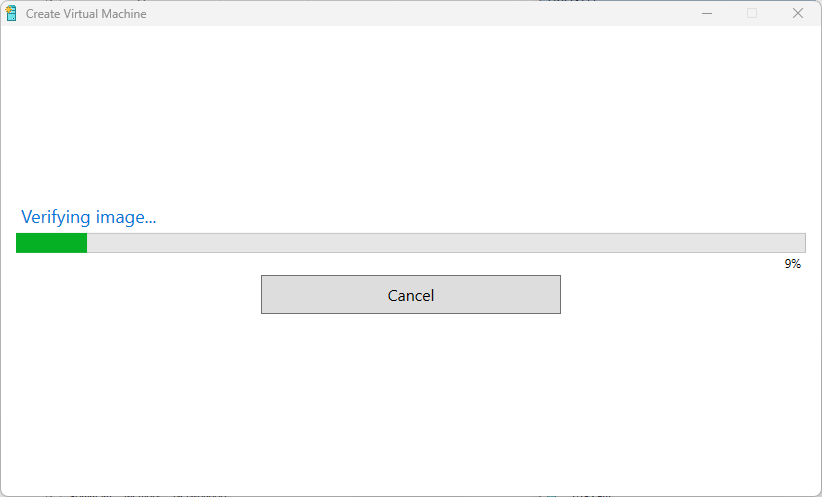

Verifying image...

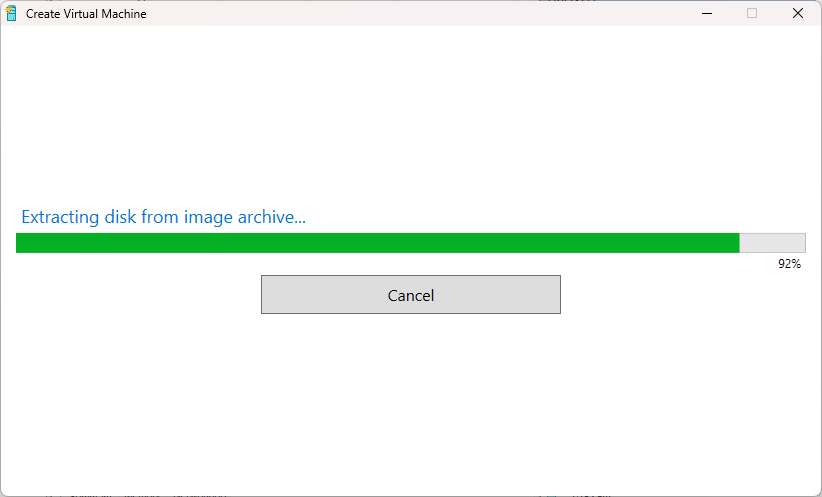

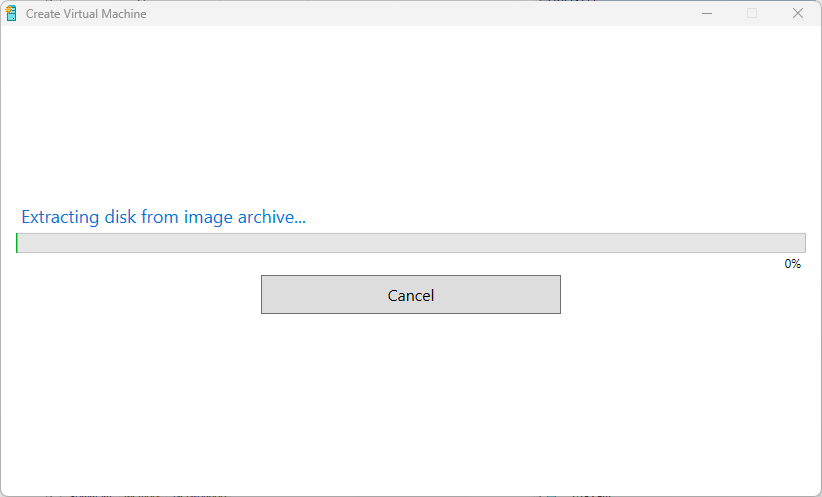

Extracting disk from image archive...
Creating hard drive...
Setting up the OS installation environment

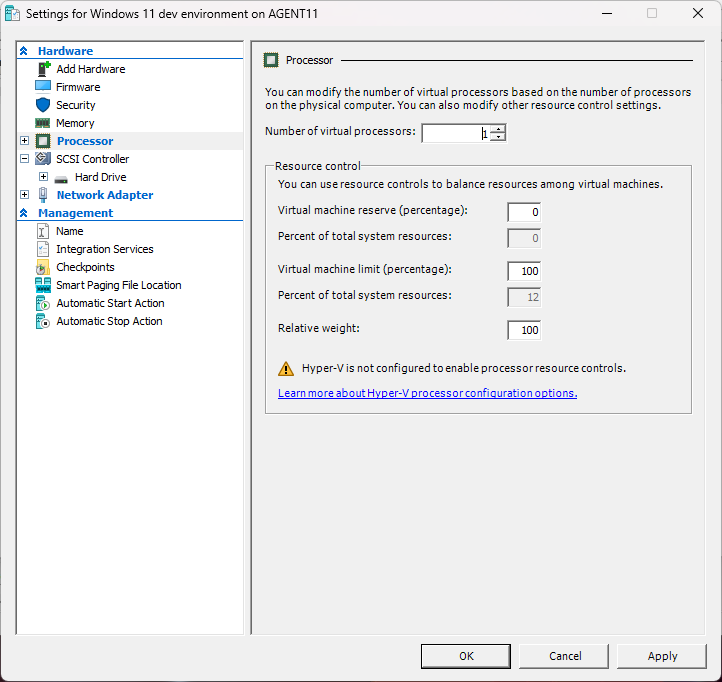

Allocating processor cores

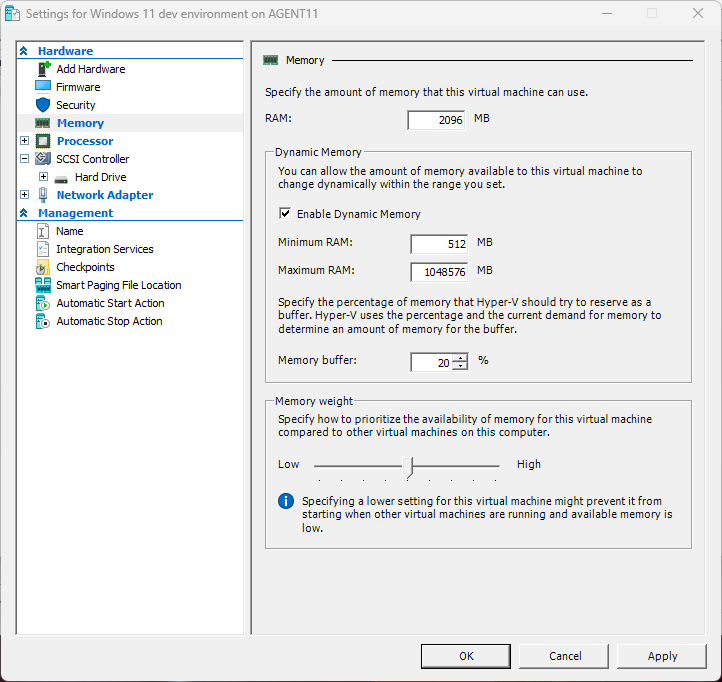

Allocating RAM

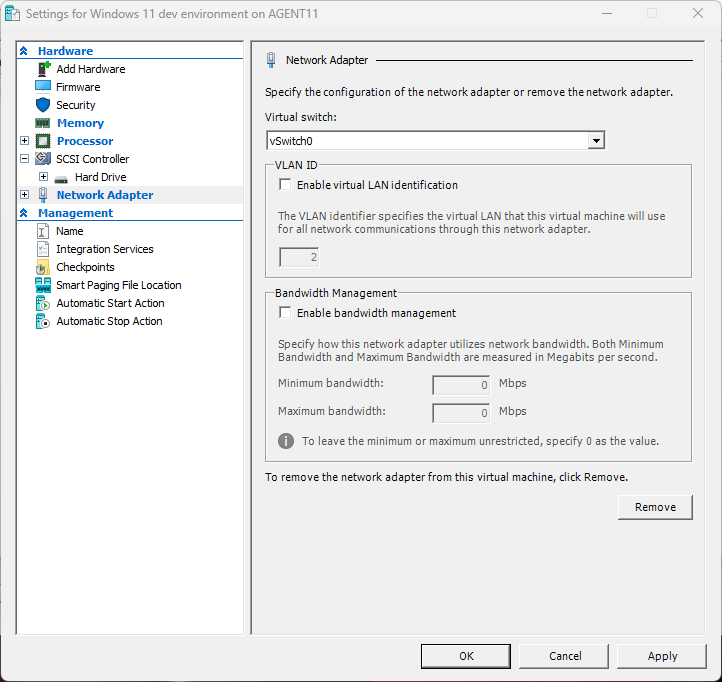

Assigning VM to vSwitch

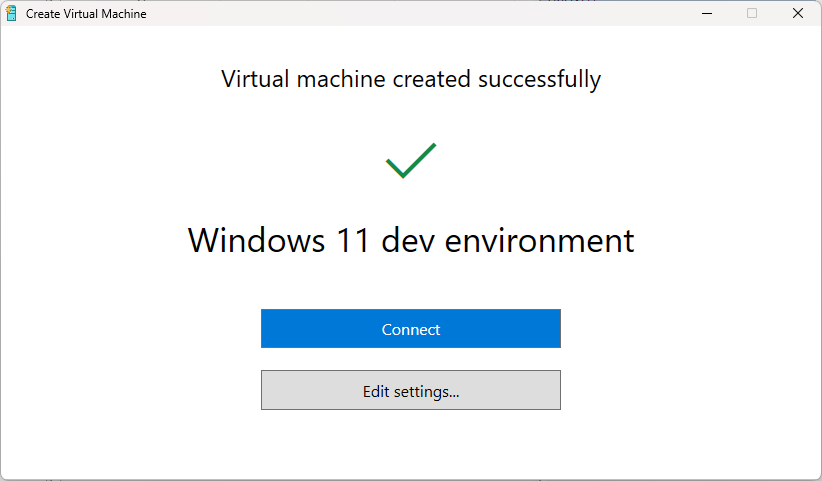

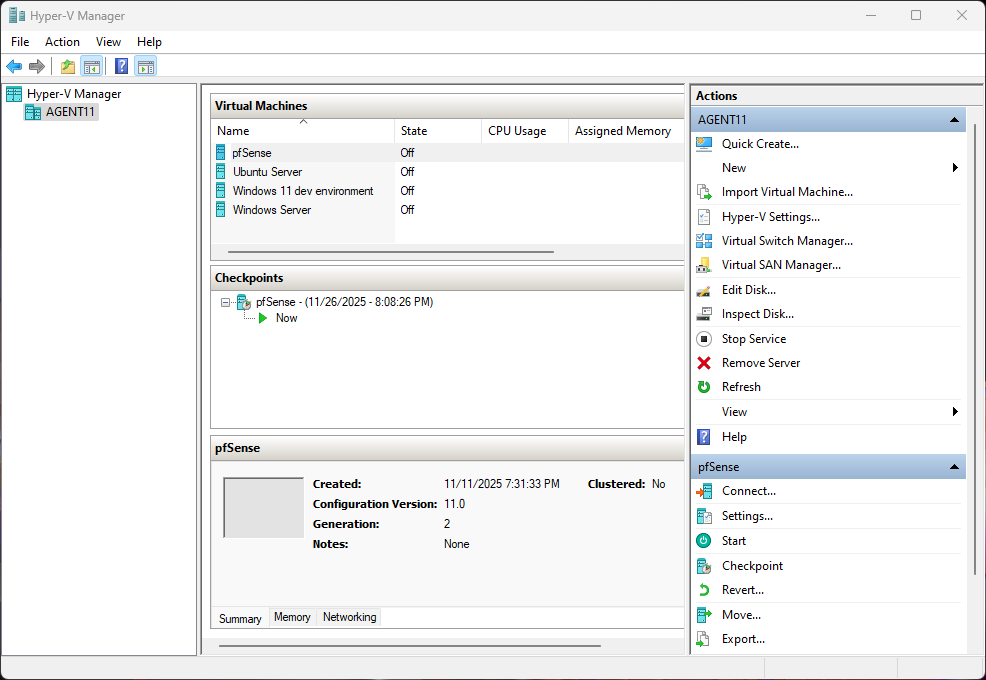

Windows 11 dev environment listed under Virtual Machines

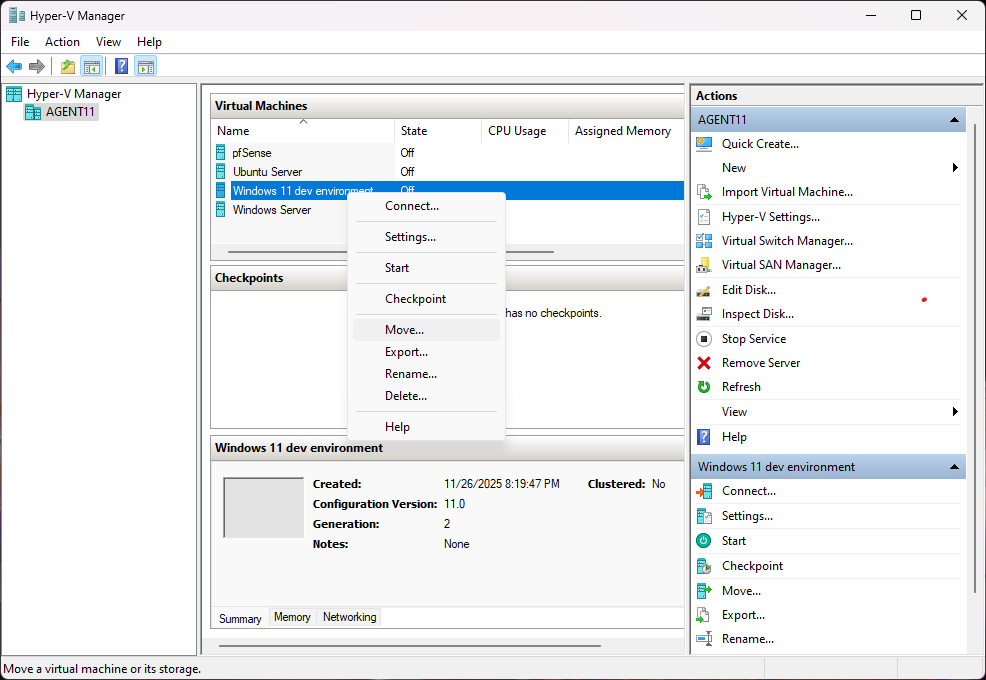

To relocate the VM, right-click, select Move

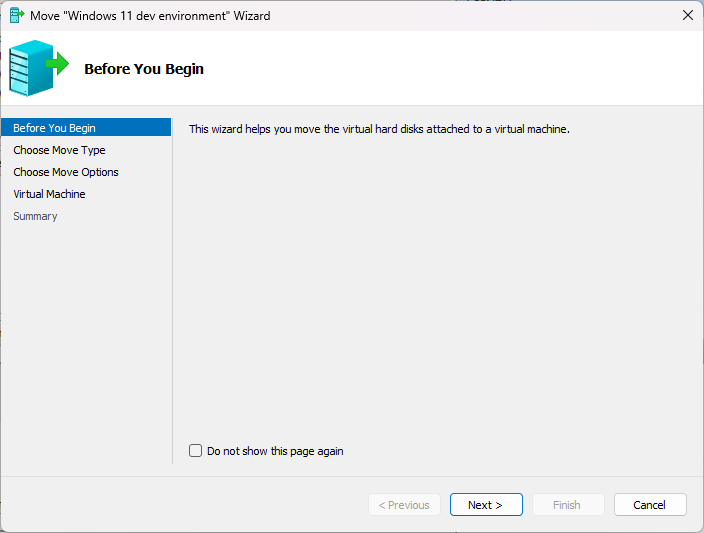

Move "Windows 11 dev environment" Wizard

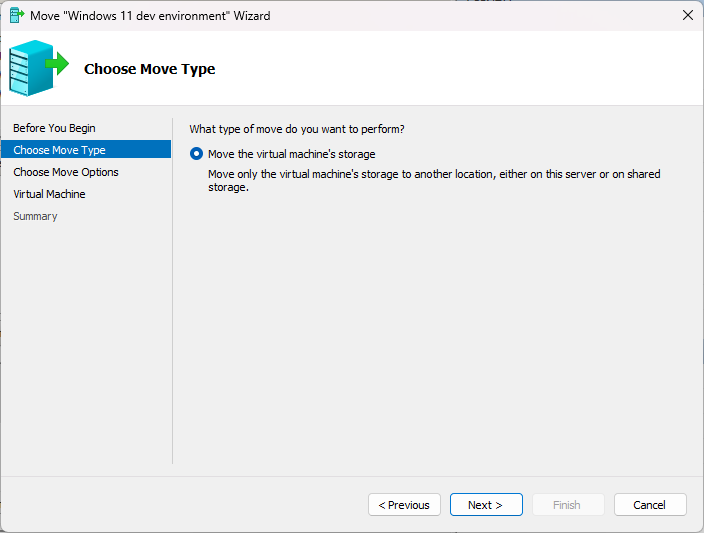

Choose Move Type

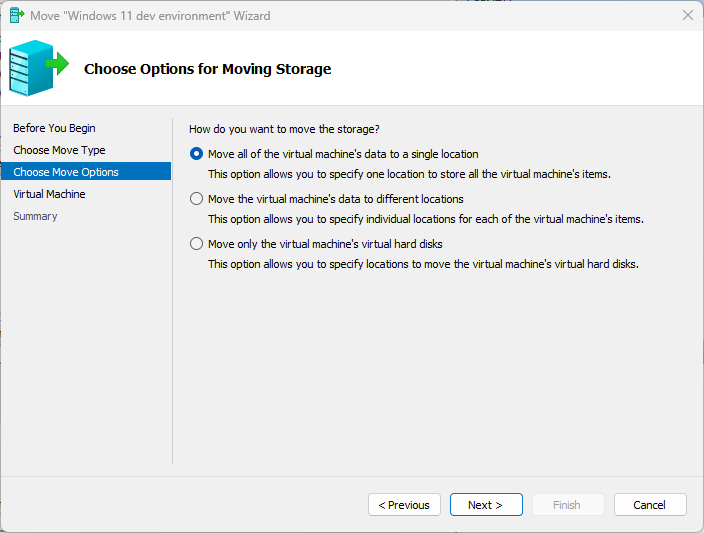

Choose Options for Moving Storage

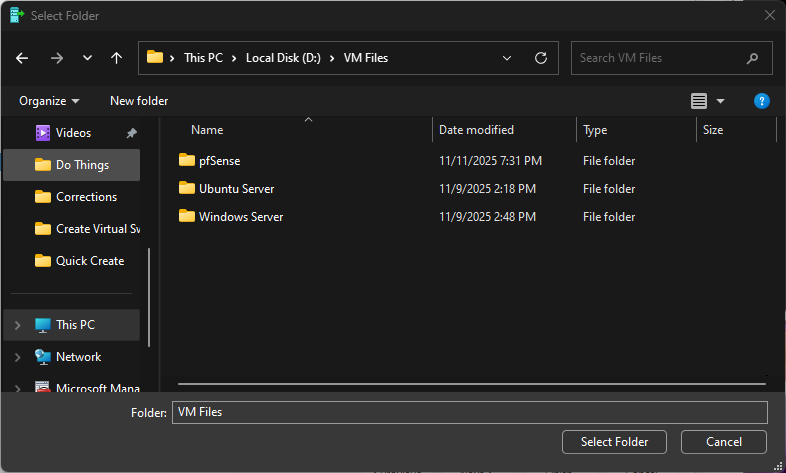

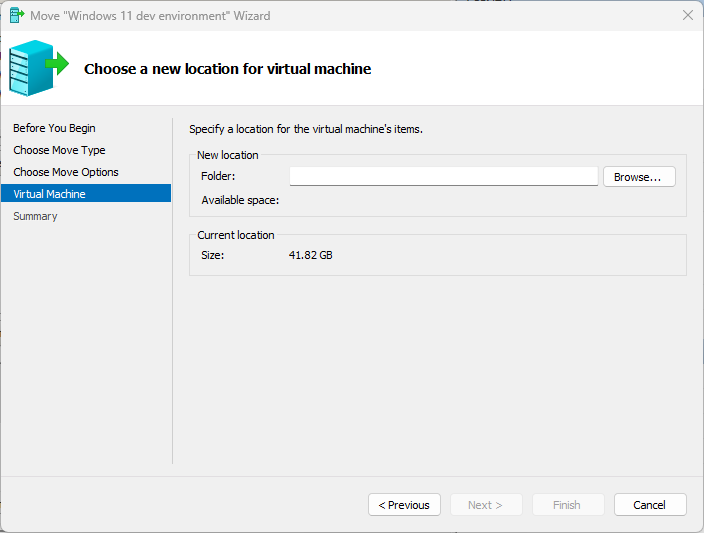

Choose a new location for virtual machine

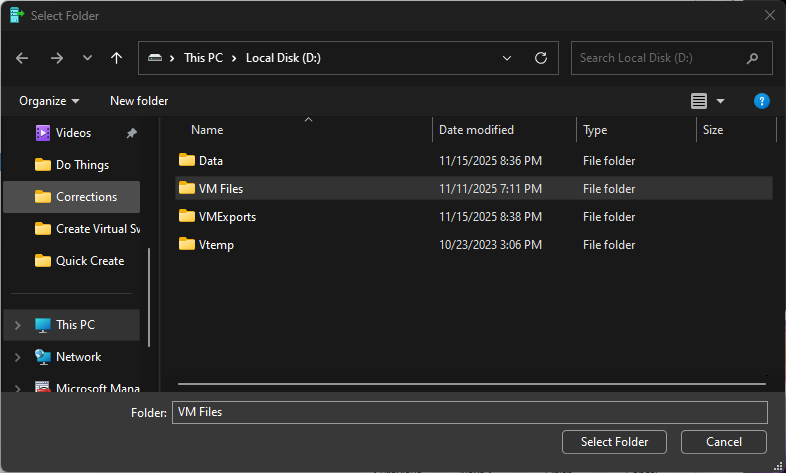

Specified storage location for virtual machine

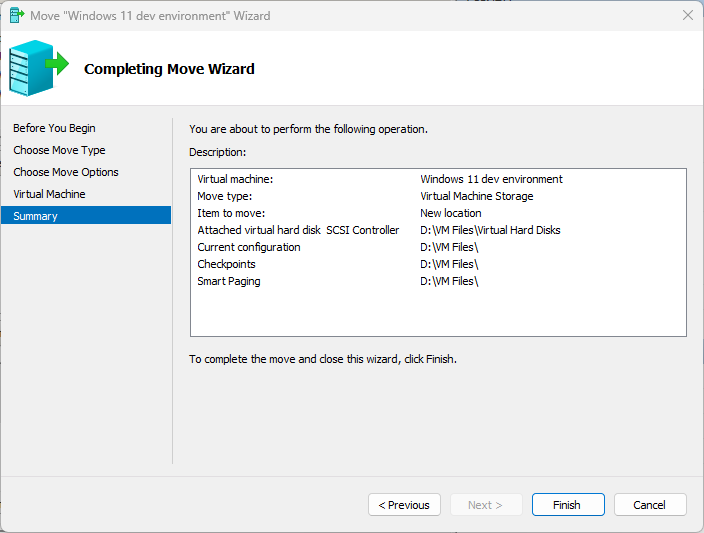

Completing Move Wizard Summary - Click Finish

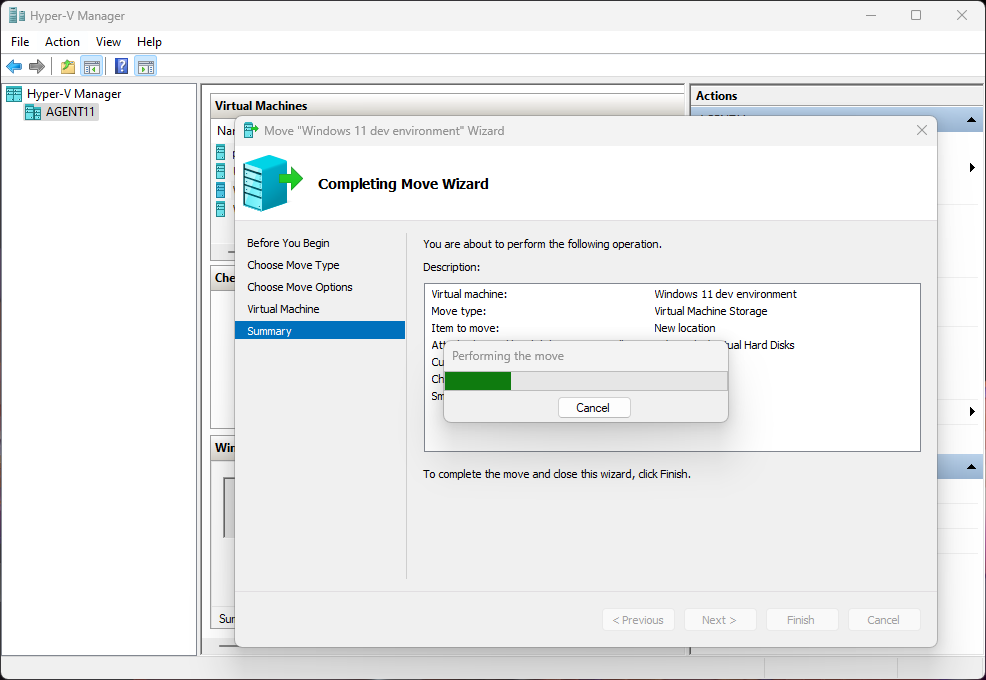

Move in progress



4. Edit Virtual Disk (Edit vDisk)

A walkthrough of modifying and managing virtual hard disk files (.vhdx) using the Edit Disk wizard

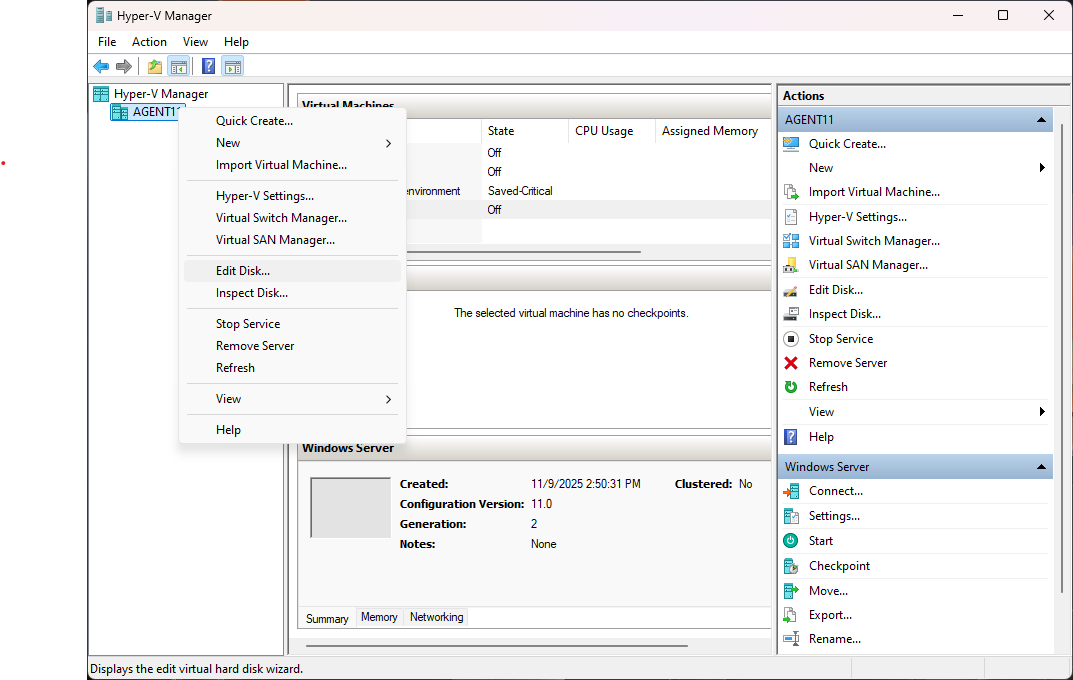

Right-click on Hyper-V hostname in upper-left, select Edit Disk...

Or click on Edit Disk... in the Hyper-V Manager Actions pane on the right.

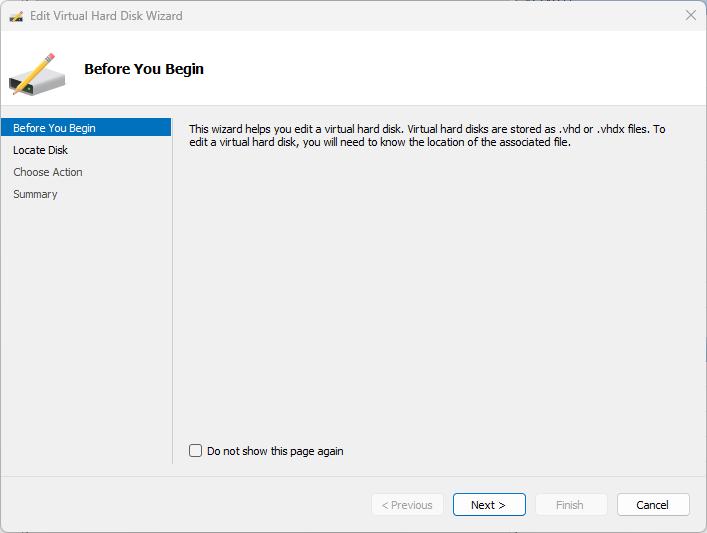

Edit Virtual Hard Disk Wizard

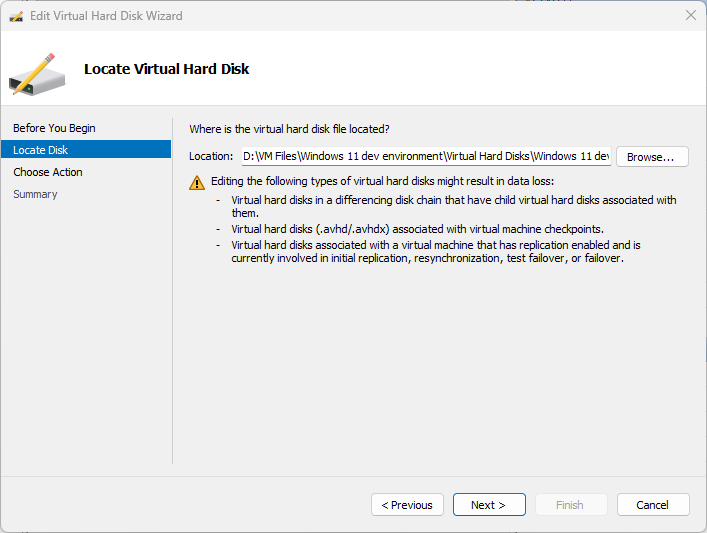

Locate Virtual Hard Disk
Choosing the Edit Action (Expand, Shrink, or Convert)

In this example, we'll select Convert.

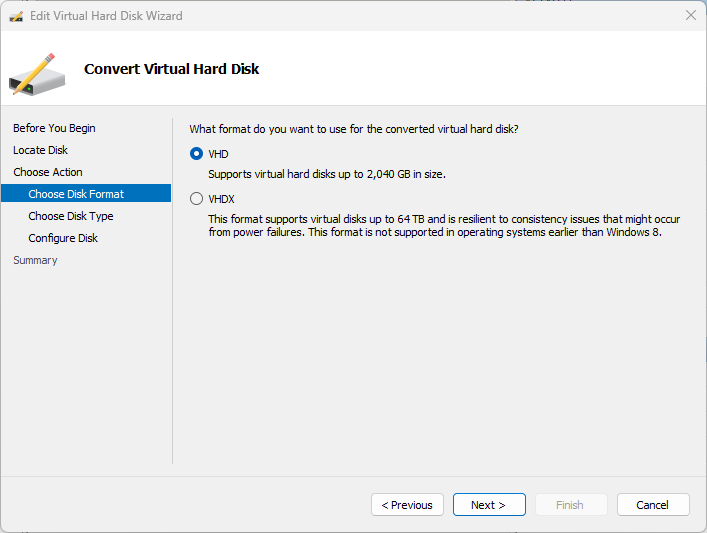

Choose Disk Format

In this example, we'll convert from VHDX to VHD.

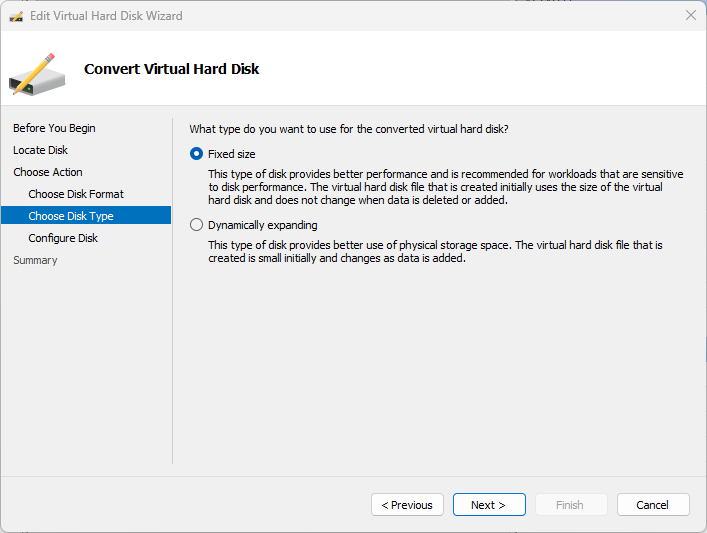

Choose Disk Type

In this example, we'll select Fixed size.

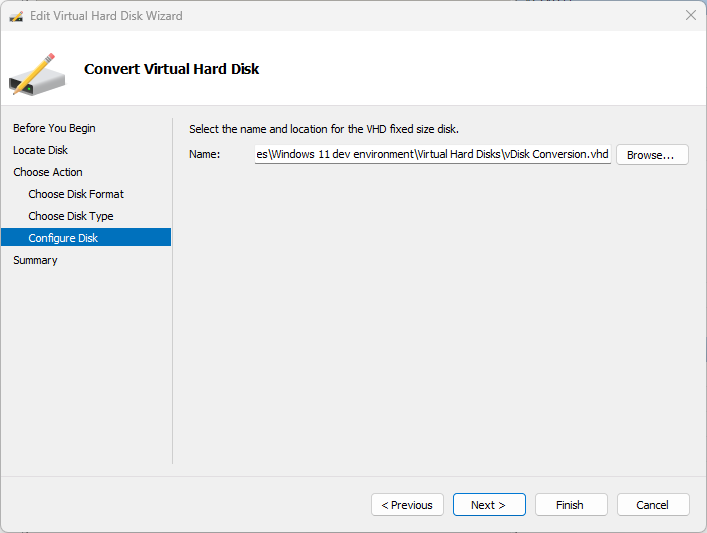

Convert Virtual Hard Disk

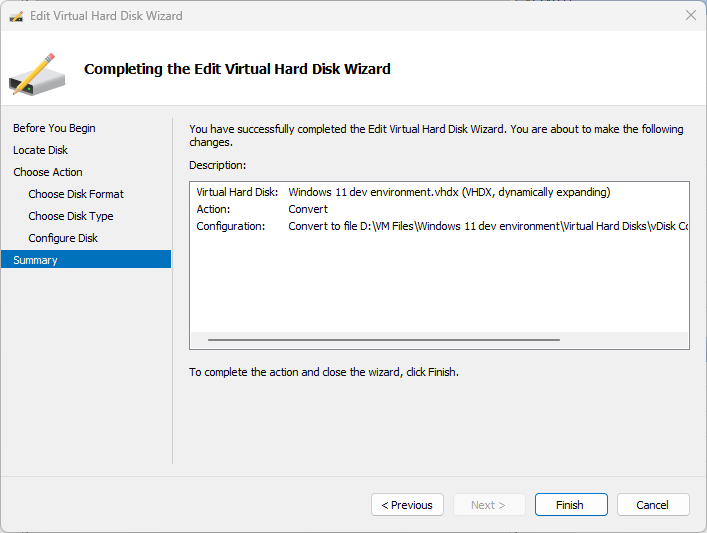

Completing the Edit Virtual Hard Disk Wizard

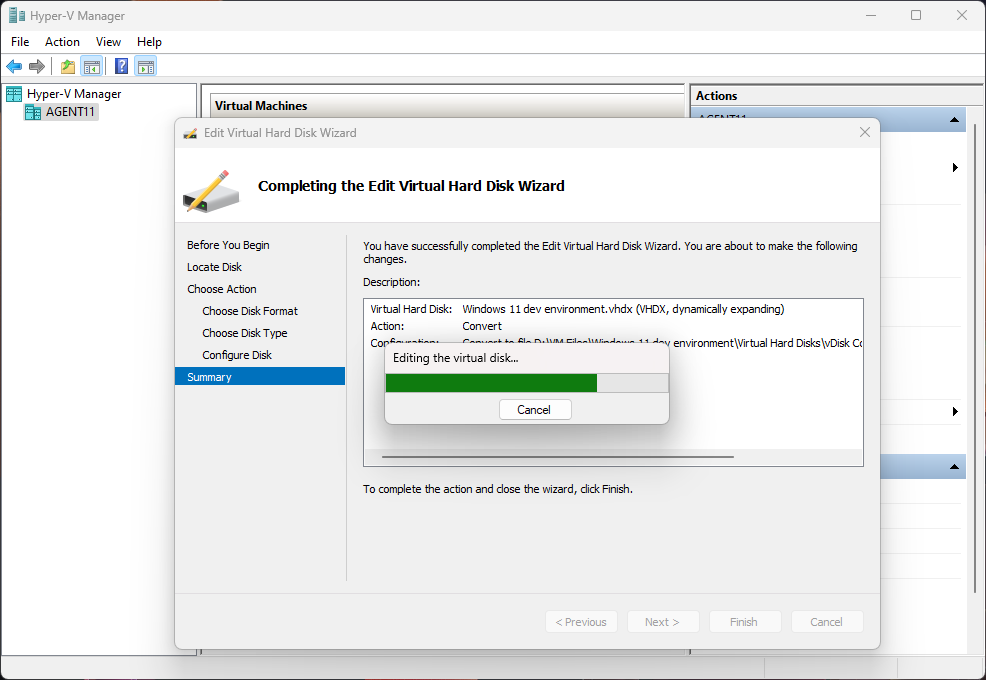

Disk conversion in progress...
