Active Reconnaissance

Host discovery, port scanning, service/version detection, and script-based fingerprinting with Nmap.

View this project on GitHub

Table of Contents

Introduction

This document covers active reconnaissance using Nmap and companion tools inside a contained, virtualized lab with three VMs. We perform host discovery (arp-scan, fping, and Nmap ping scan), then move into TCP/UDP scanning and service fingerprinting. Finally, we use NSE scripts to enumerate common services on a Metasploitable2 host.

Host Discovery

Run ARP, ping sweeps, and Nmap discovery to identify live hosts on the local network.

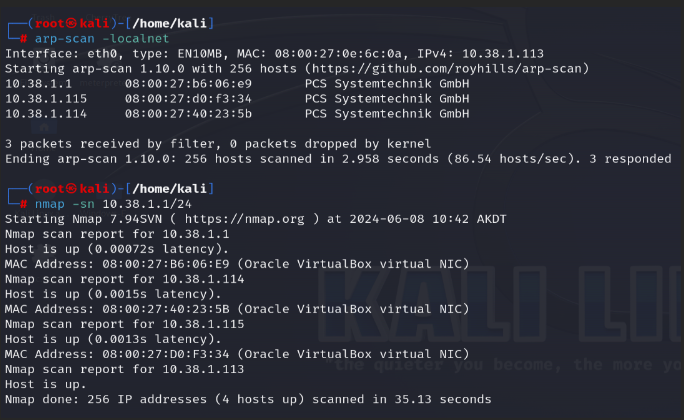

ARP scan + Nmap ping scan output
arp-scan + Nmap -sn output.

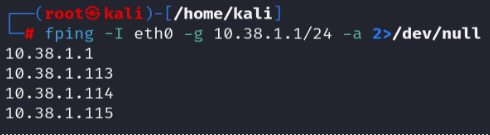

fping sweep of local subnet
fping sweep results.

Port Scanning & Host Fingerprinting

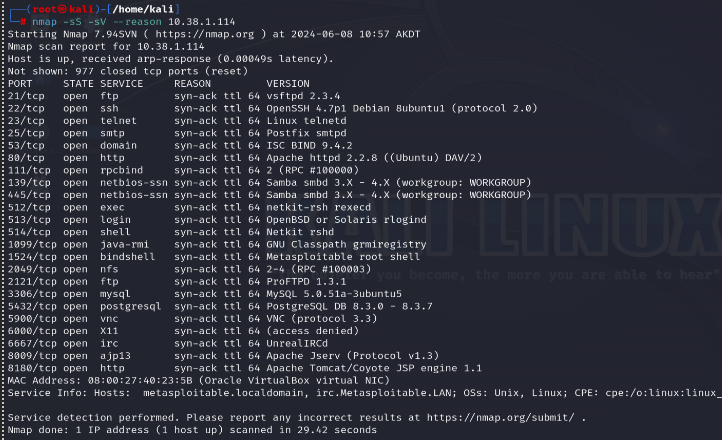

SYN scan with service version detection
SYN scan with -sV service detection.

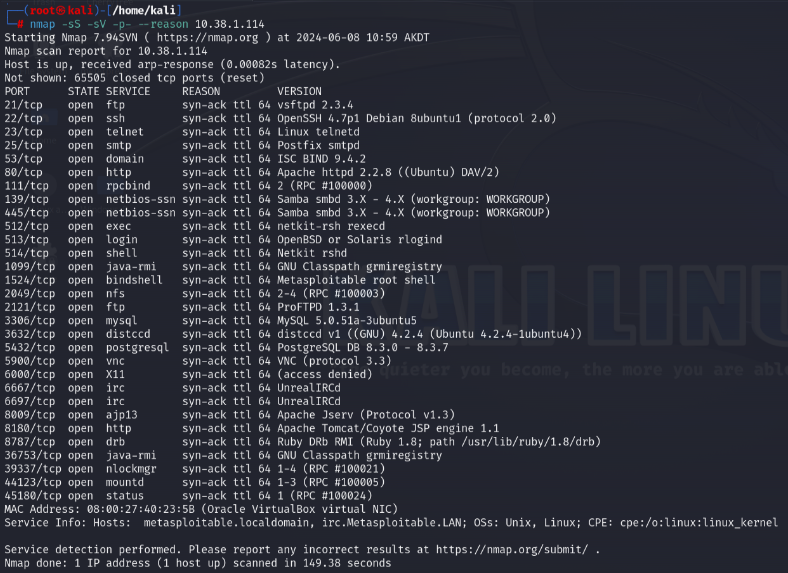

Full port scan
Full port sweep against the target.

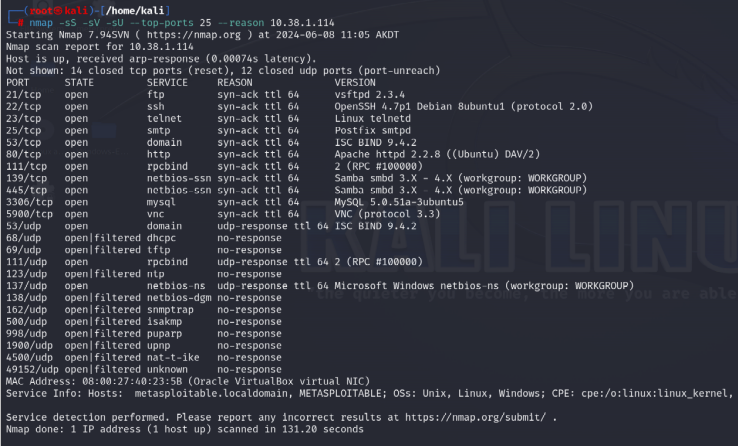

SYN + service detection + UDP scan
Combining TCP and UDP reconnaissance.

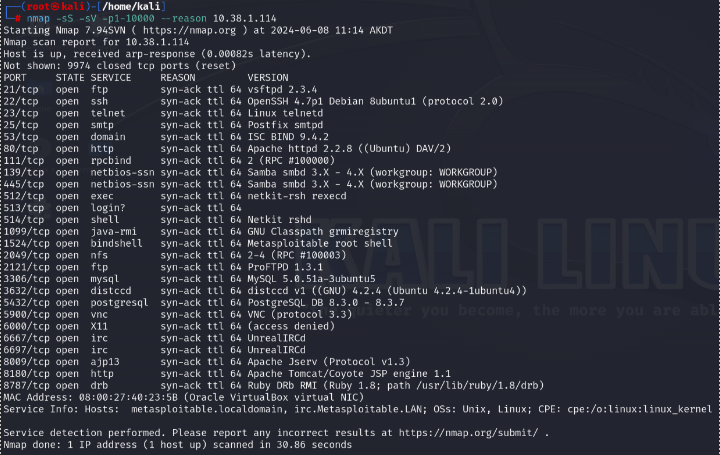

Scan of ports 1-10000 with service detection
Focused low-port scan (1-10000) with -sV.

Fingerprinting with Nmap Scripts

Leverage Nmap Scripting Engine to enumerate service details and potential misconfigurations.

FTP Enumeration

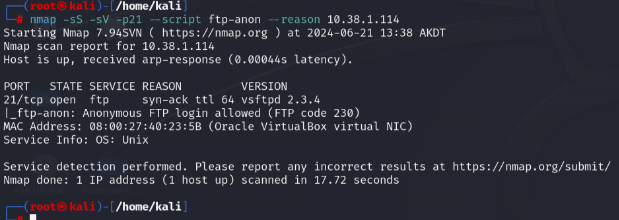

Nmap FTP anonymous login script result
Anonymous FTP checks.

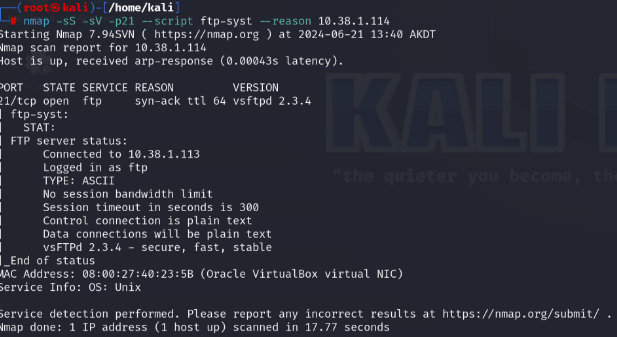

Nmap FTP SYST response
FTP SYST / banner.

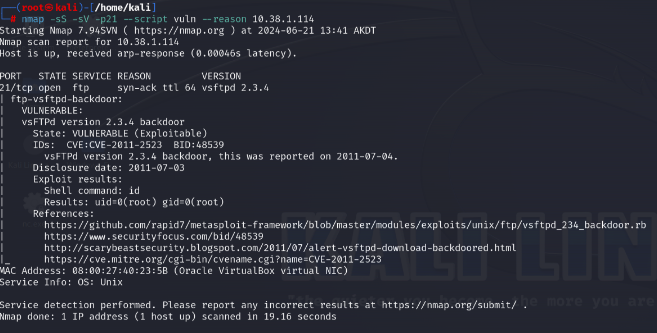

Nmap FTP vulnerability scripts output
FTP vuln script output.

SSH Enumeration

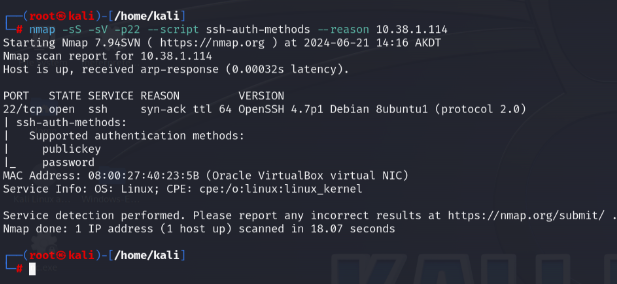

Nmap SSH auth methods
SSH auth methods.

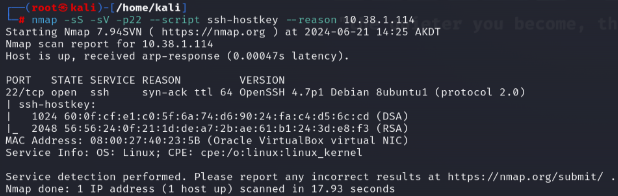

Nmap SSH host key fingerprints
Host key fingerprints.

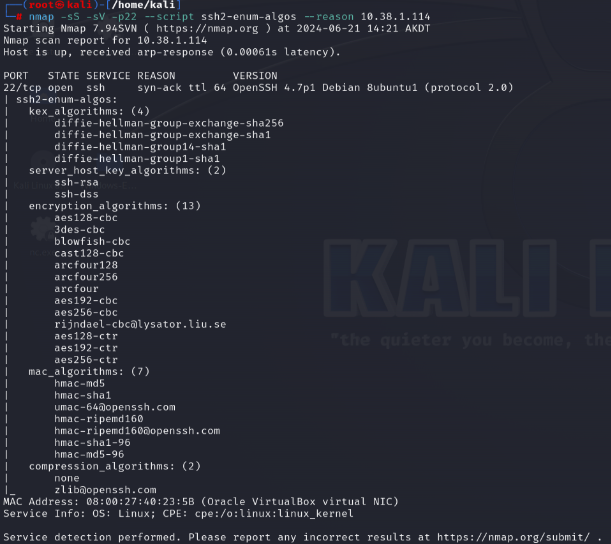

Nmap SSH algorithms enumeration
Cipher/KEX algos.

SMB Enumeration

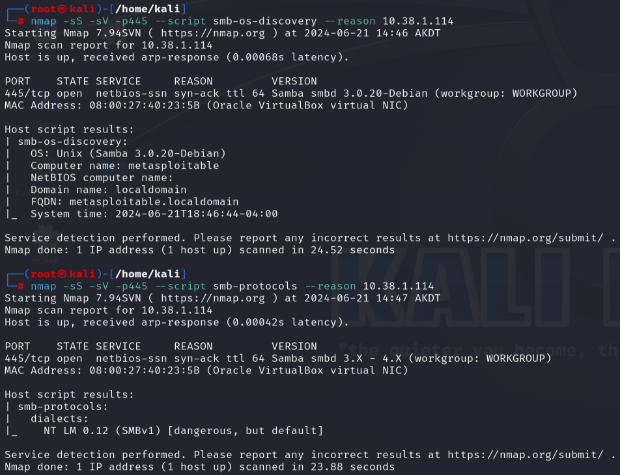

Nmap SMB OS discovery
OS discovery via SMB.

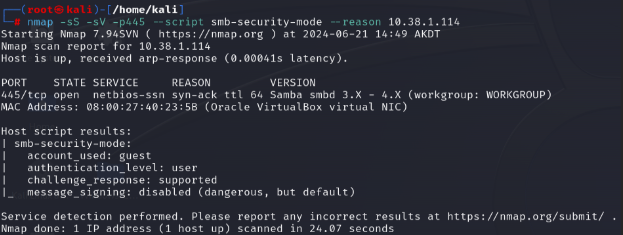

Nmap SMB security mode
SMB security mode.

Web Server Enumeration

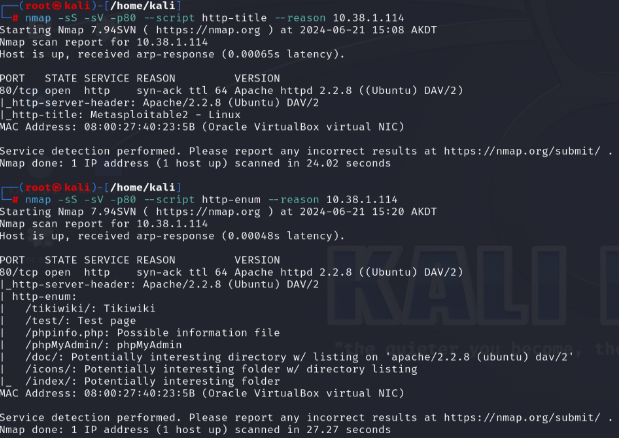

Nmap HTTP title enumeration
http-title results.

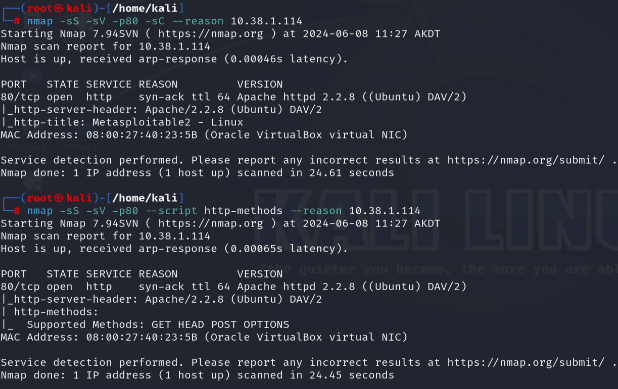

Nmap HTTP methods enumeration
http-methods check.

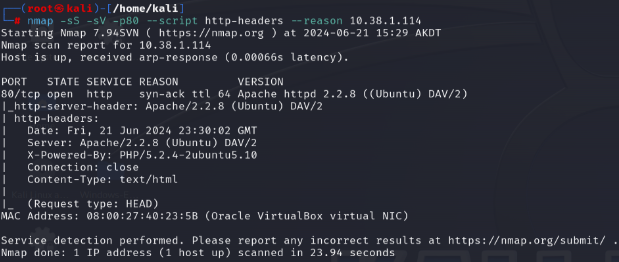

Nmap HTTP headers inspection
http-headers output.

Mitigations

This example goes through performing Active Reconnaissance with the use of arp-scan, fping, and Nmap utilities. The mitigations here are really about limiting what an attacker can figure out in the information gathering phase, rather than stopping a specific exploit.

Mitigating Against Host Discovery (arp-scan, fping, Nmap ping sweep)

Firewall Configuration

Firewalls can be configured to block or not respond to ICMP ping requests, which makes ping-based host discovery blind. With that being said, a host that is not responding to pings can still be found using other methods, so this is more of a speed bump than a true fix in preventing it.

Network Segmentation

This limits what's visible from any given position on a network. If an attacker lands on a user VLAN, they shouldn't be able to ARP sweep into the server or infrastructure VLANs.

Mitigating Against Port Scanning

Firewall Configuration

A properly configured firewall should only have ports open that are actually needed. Every unnecessary open port is information an attacker can use and a potential attack surface.

IDS/IPS - Intrusion Detection Systems / Intrusion Prevention Systems

IDS/IPS systems like Snort or Suricata have signatures for Nmap SYN scans, aggressive service detection, and UDP sweeps. An IDS alone won't stop a scan but will alert on it.

Port Knocking

There is also a technique called Port Knocking, where ports appear closed until a specific sequence of connection attempts is made, hiding services from casual scanning.

Mitigating Against Service Fingerprinting and NSE Scripts

Banner Suppression

The FTP, SSH, and HTTP enumeration sections of this example show just how much version and configuration detail leaks through default banners. Stripping those removes a lot of the value from service detection scans.

SSH

Disabling weak ciphers and key exchange algorithms reduces what's visible to tools like ssh2-enum-algos and also improves the overall security posture.

SMB

Disabling SMBv1 entirely and enforcing SMB signing cuts off a lot of what the SMB NSE scripts are looking for.

Web Server

Suppressing the Server header and disabling unnecessary HTTP methods like PUT and DELETE limits what http-headers and http-methods return.

Anonymous FTP

In this example, anonymous FTP was flagged. Disabling anonymous FTP is a straightforward fix that eliminates that finding entirely.

The Big Picture: Active recon is largely unavoidable if an attacker has network access. The goal of these mitigations isn't to make recon impossible, it's to reduce the signal quality so that what is found is less actionable. A hardened environment still shows up on an internal scan, but it reveals far less about what to target and how.
